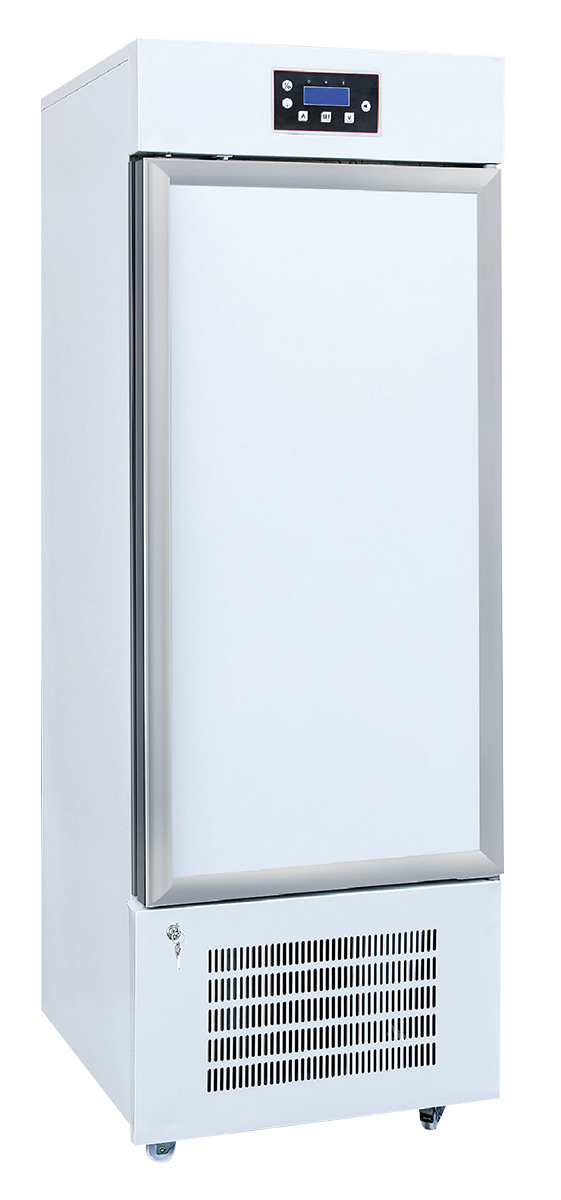

Deep Freezer KDF-A100

Deep Freezer KDF-A100 offers a high storage capacity with thermostat-based refrigeration. System features large data storage, auto-defrost and functional alarms. Galvanized steel exterior with stainless steel interior improve toughness and durability. High density polyurethane insulation with magnetic seal rings promotes impermeability.

Specifications :

Available Options	I II III
Storage Capacity	150 L 350 L 600 L
Net Volume	200 L 360 L 620 L
Internal Dimensions	450 x 450 x 1000 mm 540 x 565 x 1190 mm 620 x 650 x 1550 mm
External Dimensions	655 x 595 x 1420 mm 655 x 595 x 1990 mm 800 x 745 x 1990 mm
Temperature Range	-5°C to 30°C
Refrigeration	Forced cooling
Refrigerant	R404A
Data Storage	Up to 30 days
Connectivity	USB port
Power Supply	195 V - 230 V / 50 Hz
Temperature Sensor	PT 100 RTD sensors
Insulation	6 mm (Polyurethane)
Weight	120 Kgs 165 Kgs 200 Kgs

Features :

•   CFC-free eco-friendly cooling
•   Rapid cooling technology
•   Double-glazed insulation with magnetic gasket
•   Automatic charging for power back up
•   Alarm: Temperature limits, open door, low voltage and power off conditions
•   User-friendly digital control panel
•   Thermal printer (optional)

APPLICATIONS :

Used in diagnostic laboratories, hospital blood banks, blood transfusion centers, clinical pathology laboratories to meet standards of performance and controlled temperature storage needs to reliably store vaccines, reagents, blood-plasma and other bio-chemical products used for pathological applications.
